0MAXIMUM POWER OUTPUT : 555W
POSITIVE POWER TOLERANCE : 0~+3%
MAXIMUM EFFICIENCY : 21.48%
Advanced module technology delivers superior module efficiency
● Gollium-doped Wafer
● Non destructive cutting
● MBB half-cut
Excellent power generation performance
● Excellent IAM and low irradiation performance
● Lower temperature coefficient
● 0.45% linear Power decline
High module quality ensures long-term reliability
● Strict selected material
● Advanced technology
● Leading stondod
Ultra-hydrophilic self-cleaning coating techniques
Power Range
Maximum Power Output
Positive Power Tolerance
Maximum Efficiency
 |  |
| Electrical Characteristics STC | RS6-535MBG-E3 | RS6-540MBG-E3 | RS6-545MBG-E3 | RS6-550MBG-E3 | RS6-555MBG-E3 |
| Maximum Power (Pmax) | 535W | 540W | 545W | 550W | 555W |
| Power Tolerance | 0~+5W | 0~+5W | 0~+5W | 0~+5W | 0~+5W |
| Module Efficiency | 20.71% | 20.90% | 21.10% | 21.29% | 21.48% |
| Maximum Power Current (Imp) | 12.90A | 12.97A | 13.04A | 13.12A | 13.19A |
| Maximum Power Voltage (Vmp) | 41.50V | 41.65V | 41.80V | 41.95V | 42.10V |
| Short Circuit Current (Isc) | 13.78A | 13.85A | 13.92A | 13.98A | 14.04A |
| Open Circuit Voltage (Voc) | 49.35V | 49.50V | 49.65V | 49.80V | 49.95V |
Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m², Cell Temperature 25℃)
| Electrical Characteristics NOCI | RS6-535MBG-E3 | RS6-540MBG-E3 | RS6-545MBG-E3 | RS6-550MBG-E3 | RS6-555MBG-E3 |
| Maximum Power (Pmax) | 399.9W | 403.6W | 407.4W | 411.1W | 414.8W |
| Maximum Power Current (Imp) | 10.38A | 10.43A | 10.49A | 10.56A | 10.61A |
| Maximum Power Voltage (Vmp) | 38.55V | 38.69V | 38.83V | 38.97V | 39.11V |
| Short Circuit Current (Isc) | 11.14A | 11.20A | 11.25A | 11.31A | 11.35A |
| Open Circuit Voltage (Voc) | 46.40V | 46.54V | 46.68V | 46.82V | 46.97V |
NOCT, Irradiance of 800W/m², AM1.5, Ambient Temperature 20℃, wind Speed 1m/s.
| Electrical Characteristics with 21% rear side power gain | RS6-535MBG-E3 | RS6-540MBG-E3 | RS6-545MBG-E3 | RS6-550MBG-E3 | RS6-555MBG-E3 |
| Maximum Power (Pmax) | 647W | 653W | 659W | 666W | 672W |
| Maximum Power Current (Imp) | 15.61A | 15.69A | 15.78A | 15.88A | 15.96A |
| Maximum Power Voltage (Vmp) | 41.50V | 41.65V | 41.80V | 41.95V | 42.10V |
| Short Circuit Current (lsc) | 16.67A | 16.76A | 16.84A | 16.92A | 16.99A |
| Open Circuit Voltage (Voc) | 49.35V | 49.50V | 49.65V | 49.80V | 49.95V |
| Mechanical Characteristics | |
| Cell Type | MonoP-Type, 182x182(±1)mm, 144(6x24)Half-Cut cells |
| Glass | 2mm+2mm, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Juction Box | IP68 Rated, With Bypass Diodes |
| Dimension | 2278×1134×35mm |
| Output Cable | 4 mm2(EU), 300 mm, length can be customized |
| Weight | 32.1kg |

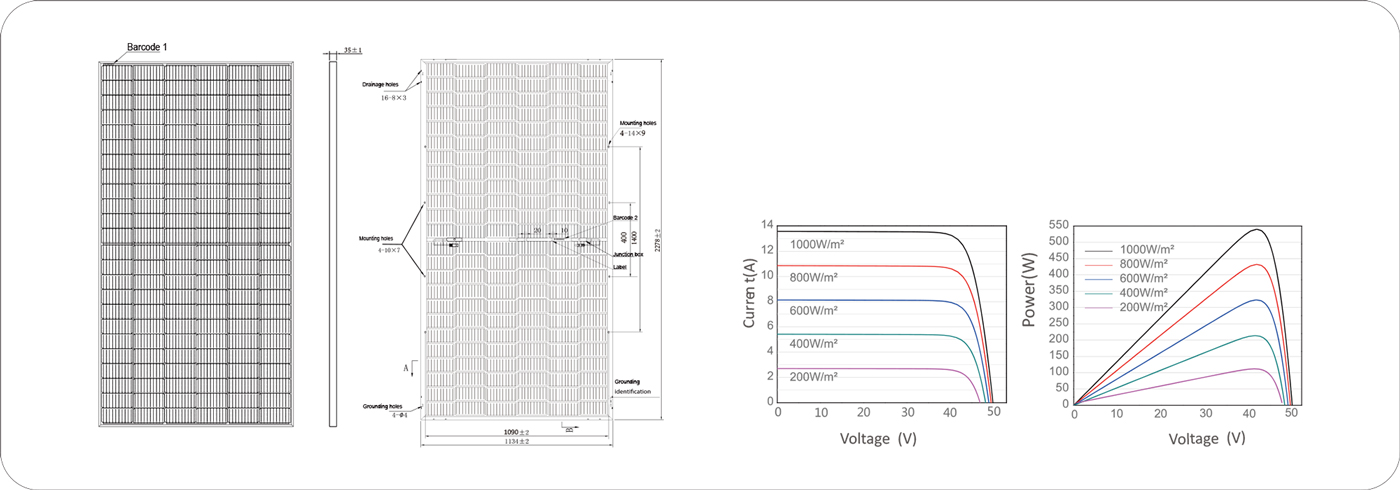

| Installation Hole Location | See Drawing Above |
Characteristics
Temperature Coefficient of VOC | -0.27%/℃ |
Temperature Coefficient of ISC | +0.04%/℃ |
Temperature Coefficient of PMAX | -0.35%/℃ |
Nominal Operating Cell Temperature (NOCT) | 45℃ ± 2℃ |
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types.
Packing Information
Container | 40' HQ |
Pallets per Container | 20 |
Pieces per Container | 620 |
Maximum Ratings
Operating Temperature | -40℃~+85℃ |
Maximum System Voltage | 1500VDC |
Maximum Series Fuse Rating | 30A |
Mainly distributed in countries and regions:Germany, Spain, Italy, Tunisia, France, Netherlands, United Kingdom, Austria, Switzerland, Czech Republic, Sweden, Australia, New ZealandSouth Africa, United Arab Emirates, Argentina, Brazil, Colombia, Canada, Malaysia, Singapore, Thailand, Vietnam, Japan
