0MAXIMUM POWER OUTPUT : 595W
POSITIVE POWER TOLERANCE : 0~+3%
MAXIMUM EFFICIENCY : 21.29%
Advanced module technology delivers superior module efficiency
● Gallium-doped Wafer
● Non destructive cutting
● MBB holf-cut
Excellent power generation performance
● Excellent IAM and low irradiation performance
● Lower temperature coefficient
● 0.45% lineor Power decline
High module quality ensures long-term reliability
● Strict selected materiol
● Advanced technology
● Leoding standad
Ultra-hydrophilic self-cleaning coating techniques
Power Range
Maximum Power Output
Positive Power Tolerance
Maximum Efficiency
 |  |
| Electrical Characteristics STC | RS7-580MBG-E2 | RS7-585MBG-E2 | RS7-590MBG-E2 | RS7-595MBG-E2 |
| Maximum Power (Pmax) | 580W | 585W | 590W | 595W |
| Power Tolerance | 0~+5W | 0~+5W | 0~+5W | 0~+5W |
| Module Efficiency | 20.75% | 20.93% | 21.11% | 21.29% |
| Maximum Power Current (Imp) | 12.90A | 12.97A | 13.04A | 13.12A |
| Maximum Power Voltage (Vmp) | 44.96V | 45.10V | 45.25V | 45.35V |
| Short Circuit Current (Isc) | 13.78A | 13.85A | 13.92A | 13.98A |
| Open Circuit Voltage (Voc) | 53.46V | 53.65V | 53.84V | 54.06V |
Values at Standard Test Conditions STC (AM1.5, Irradiance 1000W/m², Cell Temperature 25℃)
| Electrical Characteristics NOCT | RS7-580MBG-E2 | RS7-585MBG-E2 | RS7-590MBG-E2 | RS7-595MBG-E2 |
| Maximum Power (Pmax) | 433.3W | 437.0W | 440.7W | 444.5W |
| Maximum Power Current (Imp) | 10.38A | 10.43A | 10.49A | 10.56A |
| Maximum Power Voltage (Vmp) | 41.74V | 41.90V | 42.01V | 42.09V |
| Short Circuit Current (Isc) | 11.14A | 11.20A | 11.25A | 11.31A |
| Open Circuit Voltage (Voc) | 49.40V | 49.56V | 49.76V | 49.92V |
NOCT, Irradiance of 800W/m², AM1.5, Ambient Temperature 20℃, wind Speed 1m/s.
| Electrical Characteristics with 21% rear side power gain | RS7-580MBG-E2 | RS7-585MBG-E2 | RS7-590MBG-E2 | RS7-595MBG-E2 |
| Maximum Power (Pmax) | 702W | 708W | 714W | 720W |
| Maximum Power Current (Imp) | 15.61A | 15.70A | 15.78A | 15.88A |
| Maximum Power Voltage (Vmp) | 44.96V | 45.10V | 45.25V | 45.35V |
| Short Circuit Curent (lsc) | 16.67A | 16.76A | 16.84A | 16.92A |
| Open Circuit Voltage (Voc) | 53.46V | 53.65V | 53.84V | 54.06V |

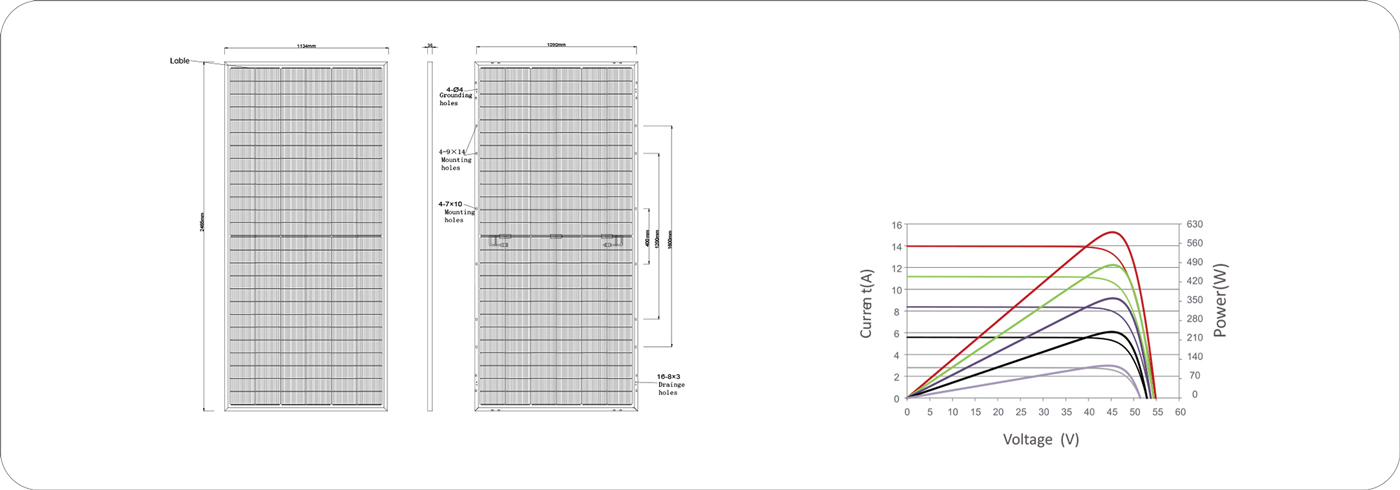

| Mechanical Characteristics | |
| Cell Type | Mono P-Type, 182×182(±1)mm, 156(6×26)Half-Cut cells |
| Glass | 2mm+2mm, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Juction Box | IP68 Rated |
| Dimension | 2465×1134×35mm |
| Output Cable | 4 mm2(EU), 300 mm, length can be customized |
| Weight | 35kg |
| Connector | MC4 compatible |
Characteristics
Temperature Coefficient of VOC | -0.27%/℃ |
Temperature Coefficient of ISC | +0.048%/℃ |
Temperature Coefficient of PMAX | -0.35%/℃ |
Nominal Operating Cell Temperature (NOCT) | 45℃ ± 2℃ |
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types.
Packing Information
Container | 40' HQ |
Pallets per Container | 16 |
Pieces per Container | 496 |
Maximum Ratings
Operating Temperature | -40℃~+85℃ |
Maximum System Voltage | 1500VDC |
Maximum Series Fuse Rating | 30A |
Mainly distributed in countries and regions:Germany, Spain, Italy, Tunisia, France, Netherlands, United Kingdom, Austria, Switzerland, Czech Republic, Sweden, Australia, New ZealandSouth Africa, United Arab Emirates, Argentina, Brazil, Colombia, Canada, Malaysia, Singapore, Thailand, Vietnam, Japan
