0MAXIMUM POWER OUTPUT : 560W
POSITIVE POWER TOLERANCE : 0~+5W
MAXIMUM EFFICIENCY : 21.7%
High power up to 510W
● Up to 22.9% module efficiency,on 210 innovation platform
● Patented i-TOPCon technology with continuous efficiency improvement including contact resistance reduction, rearreflection enhancement and edge quality repairment
High customer value
● Lower LCOE (levelized cost ofenergy), reduced BOS (balance ofsystem) cost, shorter payback time
● High module power, high string power and low voltage design
● Easy to handle and install on roofs with excellent size and light weight
High Reliability
● Less prone to micro-cracks and scratches on the back during installation
● Applicable in harsh environments such as salt, ammonia, sandhigh temperature and high humidity areas with excellent fire ratingweather resistance,salt spray,sand dust,ammonia performance
● Mechanical performance up to 5400 Pa positive load and 2400 Panegative load
Power Range
Maximum Power Output
Positive Power Tolerance
Maximum Efficiency

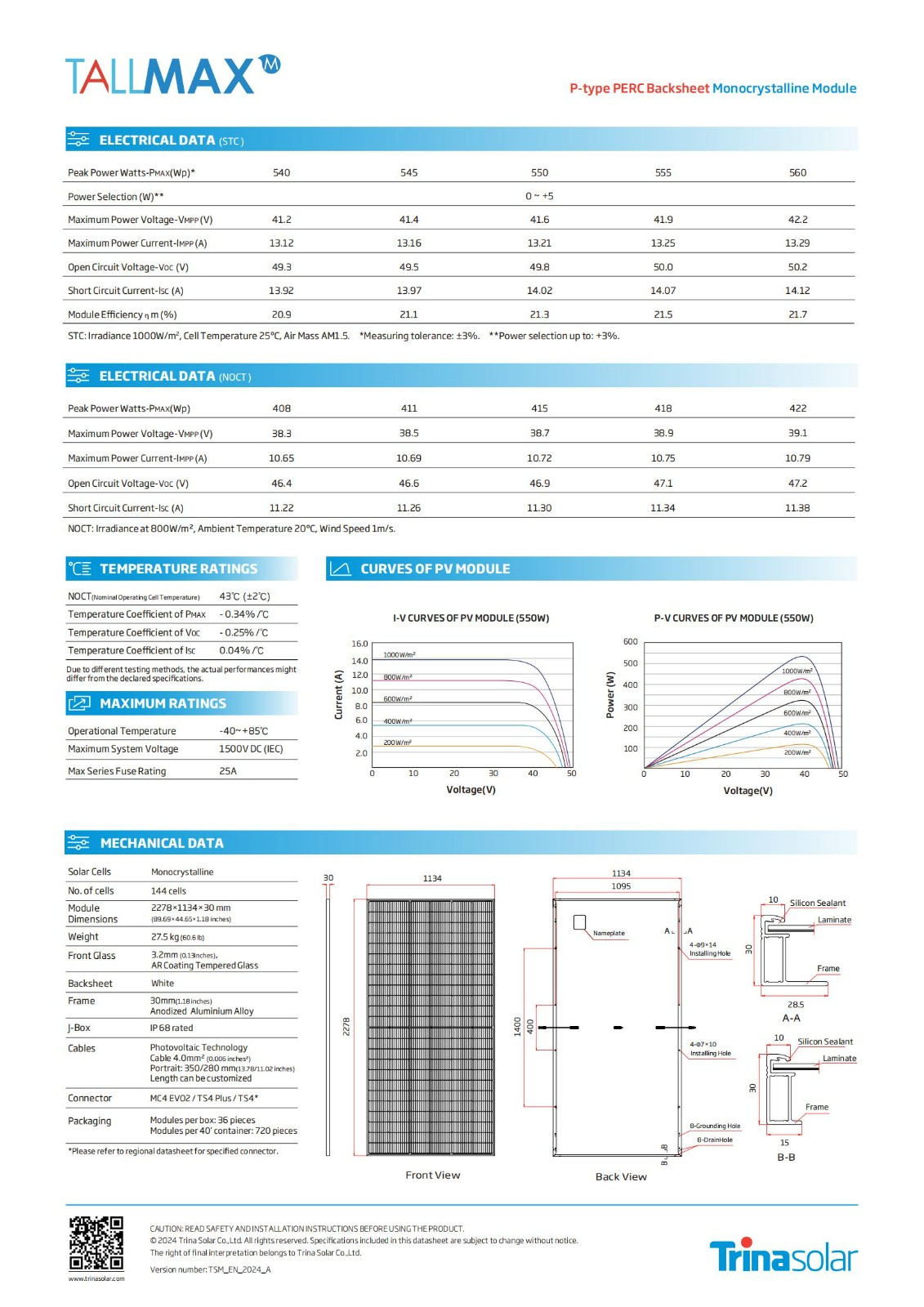

| MECHANICAL DATA | |
| Solar Cells | P-type PERC |
| No. of Cells | 144 cells |
| Module Dimensions | 2278×1134×30 mm |
| Weight | 27.5 kg |
| Glass | AR Coating Heat Strengthened Glass,Heat Strengthened Glass,1.6mm (0.06 inches) |
| Frame | 30mm(1.18 inches) Anodized Aluminium Alloy |
| J-Box | IP 68 rated |
| Cables | Photovoltaic Technology Cable 4.0mm2(0.006 inches2)Portrait:350/280 mm(13.78/11.02inches)Length can be customized |
| Connector | MC4 EVO2/TS4 Plus/TS4* |
| Packaging | Modules per box: 36 pieces Modules per 40’ container: 720 pieces |
Mainly distributed in countries and regions:Germany, Spain, Italy, Tunisia, France, Netherlands, United Kingdom, Austria, Switzerland, Czech Republic, Sweden, Australia, New ZealandSouth Africa, United Arab Emirates, Argentina, Brazil, Colombia, Canada, Malaysia, Singapore, Thailand, Vietnam, Japan
